9500 Vibrating Wire Piezometer

Introduction

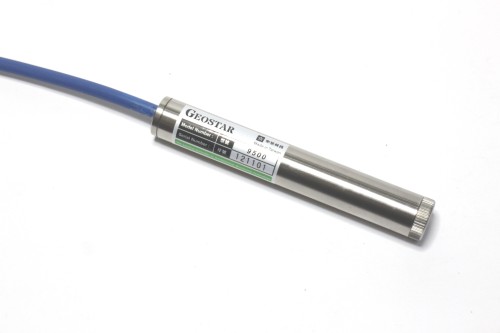

The 9500 vibrating wire water pressure gauge is fixed on both ends of the stainless steel cylinder by a group of vibrating wire sensing elements. A set of electromagnetic coils is used to excite the vibration of the steel string. By measuring the vibration frequency of the steel string, the correction coefficient can be used to calculate the pressure value acting on the sensing element, thereby achieving monitoring of groundwater pressure. This product is mainly used to monitor the groundwater pressure of structures such as water conservancy facilities, basic engineering, retaining walls, dams, embankments, deep excavation bases, tunnels, and landfill sites.

Specifications

Parameter	Value				Unit
Model	9500A (Standard type)	9500B (Low voltage type)	9500C (Slender type)	9500D (Pointed head type)
Length x Outer Diameter	129 x 19	127 x 25.5	125 x 11.5	185 x 32.5	mm
Measurement Range 9500A	175、350、700、1000、2000、3000、5000、7000(7MPa)				KPa
Measurement Range 9500B	100、175
Measurement Range 9500C	350、700、1000(1MPa)

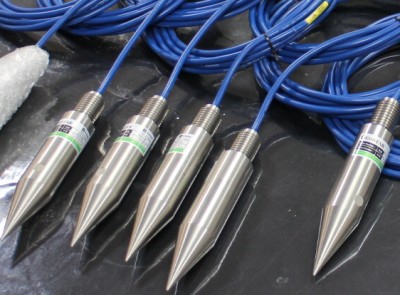

Measurement Range 9500D	100、175、350、700、1000(1MPa)
Nonlinearity	< 0.5				%FS
Sensitivity	0.025
Accuracy	±0.1
Temperature Range	-20～80				℃

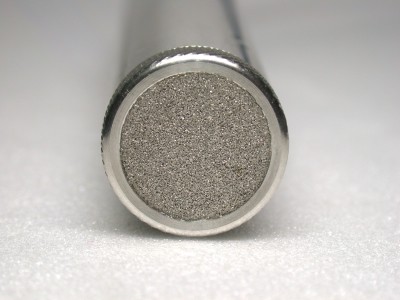

Filter Stone Aperture	50～60				μm
Filter Stone Material	316L stainless steel
Housing Material	300 series stainless steel
Maximum Measurement Range	Rated Measurement Range x 2
Cable Length	3m (length can be customized)
Cable Material	4 core / 22 AWG / PE insulation / PVC outer cover
Corresponding Reader Model	VN2004/VN2008/VN2016/VN2024
